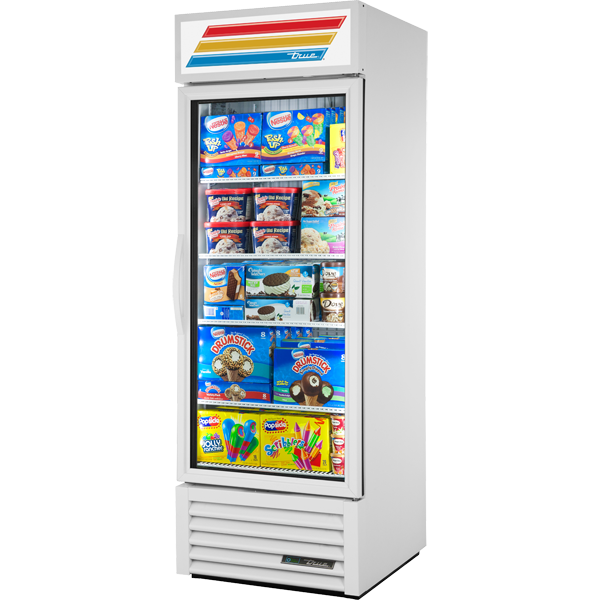

True GDM-23F-HC~TSL01 27" Swing Door Freezer

True
Add to WishlistCompare Contact for Price
  • Design
    • True’s glass door freezers are designed with enduring quality that protects your long term investment.
    • True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays frozen food and ice cream.
  • Refrigeration System
    • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
    • High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
    • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
    • Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.
    • Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.
  • Cabinet Construction
    • Exterior - non-peel or chip white powder coated cold rolled steel; durable and permanent.
    • Interior - attractive, white aluminum liner with stainless steel floor.
    • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
    • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
    • Illuminated exterior sign panel. Variety of sign options available.
  • Door
    • Triple pane thermal insulated glass door assembly with extruded aluminum frame.
    • Door fitted with 12” (305 mm) long extruded handle.
    • Self closing door. Positive seal, torsion type closure system.
    • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
  • Shelving
    • Four (4) adjustable, heavy duty PVC coated wire shelves 22–7/8”L x 21–1/4”D (582 mm x 540 mm). Four (4) chrome plated shelf clips included per shelf.
    • Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2” (13 mm) increments.
  • Lighting
    • LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
  • Model Features
    • Evaporator is epoxy coated to eliminate the potential of corrosion.
    • See our website www.truemfg.com for latest color and sign offerings.
    • Backguard and floor rack ensure optimum airflow.
    • Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
  • Electrical
    • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
    • 115/60/1 NEMA-5-15R
  • Optional Features/accessories Upcharge And Lead Times May Apply.
    • Black exterior.
    • Stainless exterior.
    • Black aluminum interior liner with black shelving.
    • Stainless interior liner.
    • 6” (153 mm) standard legs.
    • 6” (153 mm) seismic/flanged legs.
    • 2–1/2” (64 mm) diameter castors.
    • 4” (102 mm) diameter castors.
    • Novelty baskets.
    • Pricing strips.
    • Barrel Locks – located in grill assembly (requires one per door)
Ask a Question
SKU: GDM-23F-HC~TSL01
Availability: In Stock Pre order Out of stock
Categories: Glass Door Freezers mixup collection
Tags: Glass Door Freezers True GDM-23F-HC~TSL01
Description

True GDM-23F-HC~TSL01 27″ Swing Door Freezer

The True GDM-23F-HC~TSL01 27″ Swing Door Freezer is the perfect combination of energy efficiency, durable construction, and superior cooling for displaying and storing frozen foods and ice cream. Designed with high-quality materials and cutting-edge refrigeration technology, this freezer offers optimal product temperatures, lower operating costs, and reliable performance for years to come.

Efficient Refrigeration System

This freezer features a self-contained, factory-engineered refrigeration system using R290 hydrocarbon refrigerant, ensuring zero ozone depletion potential (ODP) and a low global warming potential (GWP). The system operates efficiently, maintaining -10°F (-23.3°C) for superior food preservation.

  • Electronically commutated motors (ECMs) enhance efficiency by moving a consistent volume of air, reducing heat, energy consumption, and increasing motor reliability

  • Bottom-mounted condensing unit ensures easy maintenance

  • Automatic defrost system saves energy and shortens defrost cycles

Durable Cabinet Construction

The True GDM-23F-HC~TSL01 is designed for long-lasting performance with a non-peel, white powder-coated steel exterior, and a stainless steel floor for durability. Its white aluminum interior and high-density polyurethane insulation provide exceptional energy efficiency.

  • Corrosion-resistant, welded steel frame

  • Illuminated exterior sign panel for enhanced visibility

  • “No stoop” lower shelf maximizes product visibility

Triple-Pane Glass Door for Easy Access

The True GDM-23F-HC~TSL01 features a triple-pane thermal-insulated glass door with an extruded aluminum frame for a sleek, professional look. The self-closing door ensures energy efficiency, while the positive seal closure system guarantees consistent temperatures.

  • 12″ extruded handle for easy door access

  • Removable, magnetic door gaskets for easy cleaning

Ample Storage with Adjustable Shelving

This freezer comes with four adjustable PVC-coated wire shelves, offering flexibility in organizing your products. The shelves are adjustable on 1/2″ increments to accommodate various product sizes and are easy to maintain with chrome-plated shelf clips.

  • Shelf Dimensions: 22–7/8″L x 21–1/4″D (582 mm x 540 mm)

Efficient LED Lighting

Equipped with LED interior lighting, the True GDM-23F-HC~TSL01 ensures products are visible while consuming less energy. The lighting is safety shielded for added durability.

Specifications

  • Model: GDM-23F-HC~TSL01

  • Door Count: 1

  • Shelf Count: 4

  • Weight: 355 lbs (162 kg)

  • Dimensions:

    • Width: 27″ (686 mm)

    • Depth: 29–7/8″ (759 mm)

    • Height: 78–5/8″ (1998 mm)

  • Electrical:

    • Voltage: 115/60/1

    • Amps: 4.4

    • Plug: NEMA 5-15P

Optional Features (Additional Charges Apply)

  • Black or stainless steel exterior options

  • Black aluminum interior liner with black shelving

  • Seismic/flanged legs or castors for enhanced mobility

  • Novelty baskets, pricing strips, and barrel locks
