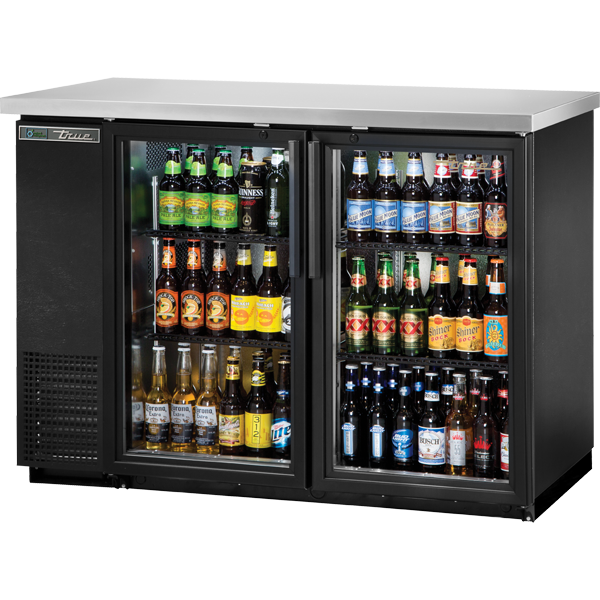

True TBB-24-48G-HC-LD 49" Glass Swing Door 24" Back Bar Cooler
- Design
- True’s refrigerated back bar coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.
- Refrigeration System
- Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Condensing unit accessed from behind front grill, slides out for easy cleaning and maintenance.
- Cabinet Construction
- Exterior - Black, powder coated cold-rolled steel with stainless steel countertop.
- Interior - Stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls.
- Door threshold protector prevents damage to cabinet from routine loading of product.
- Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
- Doors
- "Low-E", double pane thermal insulated glass door assemblies with extruded aluminum frames. The latest in energy efficient technology.
- Each door fitted with 12" (305 mm) long extruded aluminum handle.
- Positive seal doors.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
- Door locks standard.
- Shelving
- Four (4) adjustable, heavy duty, black PVC coated wire shelves 17–3/8"L x 16–1/4"D (442 mm x 413 mm). Four (4) chrome plated shelf clips included per shelf.
- Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.
- Lighting
- LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
- Model Features
- Evaporator is epoxy coated to eliminate the potential of corrosion.
- Designed to accommodate a variety of beer kegs.
- NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.
- Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-15R
- Optional Features/accessories Upcharge And Lead Times May Apply.
- 6" (153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 2–1/2" (64 mm) diameter castors.
- 4" (102 mm) diameter castors.
- Additional shelves.
- Red wine thermostat
- White wine thermostat
- Chocolate thermostat
True TBB-24-48G-HC-LD 49″ Glass Swing Door Back Bar Cooler
The True TBB-24-48G-HC-LD is a premium back bar cooler that combines reliable performance, modern design, and energy-efficient features. With its glass swing doors and robust refrigeration system, this cooler is perfect for bars, restaurants, and pubs that require efficient beverage storage and preservation.
Energy-Efficient and Eco-Friendly Cooling
True’s TBB-24-48G-HC-LD utilizes an eco-friendly refrigeration system designed for optimal energy efficiency. Equipped with R290 hydrocarbon refrigerant, this cooler offers zero ozone depletion and a low global warming potential, making it a sustainable choice for your business.
-
Factory-engineered capillary tube system for precise cooling
-
Maintains temperatures from 33°F to 38°F (0.5°C to 3.3°C) for optimal product preservation
-
Electronically commutated (ECM) motors for superior energy efficiency and quieter operation
-
Condensing unit slides out for easy cleaning and maintenance
Durable and Stylish Construction
Designed with durability in mind, the True TBB-24-48G-HC-LD features a black powder-coated exterior and a stainless steel countertop, providing a modern aesthetic while ensuring long-lasting performance. The interior is constructed from stainless steel with reinforced galvanized steel walls, making it easy to clean and maintain.
-
Reinforced stainless steel floor with 1/2″ lip for added durability
-
Foam-in-place insulation with zero ozone depletion and low global warming potential
-
Welded, heavy-duty steel frame rail for corrosion resistance
Versatile Storage and Adjustable Shelving
The True TBB-24-48G-HC-LD features four adjustable heavy-duty wire shelves, providing ample storage space for beer kegs, bottles, and cans. The shelves are easily adjustable on 1/2″ increments to meet your storage needs.
-
Capacity:
-
2 x 1/2-barrel kegs
-
48 six-packs of 12 oz cans
-
-
Shelving:
-
4 adjustable black PVC-coated wire shelves (17–3/8″L x 16–1/4″D)
-
Four chrome plated shelf clips per shelf
-
-
LED interior lighting for consistent and safe illumination
Specifications
-
Model: TBB-24-48G-HC-LD
-
Door Count: 2
-
Shelf Count: 4
-
Weight: 315 lbs (143 kg)
-
Dimensions:
-
Width: 49–1/8″ (1248 mm)
-
Depth: 24–1/2″ (623 mm)
-
Height: 35–5/8″ (905 mm)
-
-
Electrical:
-
Voltage: 115/60/1
-
Amps: 2.1
-
Plug: NEMA 5-15P
-
Optional Features (Additional Charges Apply)
-
6″ legs or seismic/flanged legs for enhanced stability
-
2–1/2″ or 4″ castors for improved mobility
-
Additional shelves for expanded storage
-
Specialized thermostats for red wine, white wine, or chocolate
