True TDD-1-HC 23" Solid Swing Door Direct Draw Beer Dispenser

True
Add to WishlistCompare Contact for Price
  • Design
    • True’s direct draw beer dispensers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.
  • Refrigeration System
    • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
    • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).
    • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
    • Condensing unit accessed from rear of unit for easy cleaning and maintenance.
  • Cabinet Construction
    • Exterior - Black, powder coated cold-rolled steel with stainless steel countertop.
    • Interior - Stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls.
    • Door threshold protector prevents damage to cabinet from routine loading of product.
    • Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
    • One (1) 3" (77 mm) diameter stainless steel insulated beer column. Cold air is directed into beer column(s) to reduce foaming and maximize draft beer profits.Anodized aluminum glass rail.
  • Door
    • Wear-resistant black powder coated exterior with heavy gauge galvanized steel liner.
    • Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
    • Positive seal doors.
    • Magnetic door gasket(s) of one piece construction, removable without tools for ease of cleaning.
    • Door lock standard.
  • Model Features
    • Evaporator is epoxy coated to eliminate the potential of corrosion.
    • Designed to accommodate all types of beer kegs.
    • Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
  • Electrical
    • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
    • 115/60/1 NEMA-5-15R
  • Optional Features/accessories Upcharge And Lead Times May Apply.
    • Double headed draft column.
    • Triple headed draft column.
    • Two-way tapper manifold.
    • Draft cap.
Ask a Question
SKU: TDD-1-HC
Availability: In Stock Pre order Out of stock
Categories: Bar Refrigeration mixup collection
Tags: Bar Refrigeration True TDD-1-HC
Description

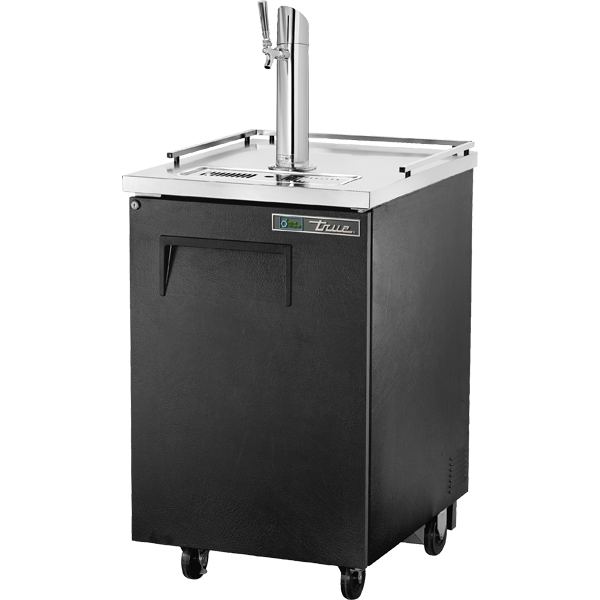

True TDD-1-HC 23″ Solid Swing Door Direct Draw Beer Dispenser

The True TDD-1-HC is a compact 23-inch commercial beer dispenser designed for small bars, food trucks, and countertop keg service. Built with precision and performance in mind, it stores and dispenses one 1/2-barrel keg while ensuring product temperature stays cold and consistent for the perfect draft pour.

Commercial-Grade Durability

Built to withstand daily commercial use, this unit features a black powder-coated steel exterior and a stainless steel countertop for easy cleaning and durability. The interior includes a reinforced stainless steel floor and heavy-duty galvanized steel walls, all insulated with eco-friendly polyurethane foam.

  • One solid swing door with magnetic gasket

  • 12″ recessed handle for secure grip

  • Foamed-in-place high-density insulation for superior cold retention

  • Lockable door for added security

Advanced Cooling Performance

The True TDD-1-HC uses a high-capacity refrigeration system with R290 hydrocarbon refrigerant, delivering cold temperatures between 33°F to 38°F (0.5°C to 3.3°C). This energy-efficient model features electronically commutated fan motors (ECM) that reduce energy use while enhancing reliability.

  • Self-contained capillary tube system

  • Epoxy-coated evaporator for corrosion resistance

  • Cold air directed into 3″ insulated stainless steel beer column to minimize foam and waste

  • Rear-access condensing unit for quick service and cleaning

Tap-Ready and NSF Certified

Designed to fit all types of standard beer kegs, this direct draw dispenser is NSF/ANSI Standard 7 certified for the safe storage and dispensing of beverages. It comes ready to use with pre-wired electrical components and a 5-15P NEMA plug.

  • Anodized aluminum glass rail included

  • Single 3″ insulated draft beer column

  • Optional tapper upgrades available including double or triple draft heads

Specifications

  • Model: TDD-1-HC

  • Door Count: 1

  • Keg Capacity: 1 x 1/2-barrel

  • Dimensions:

    • Width: 23 1/2″ (597 mm)

    • Depth: 31 1/4″ (794 mm)

    • Height: 39 3/4″ (1010 mm)

  • Electrical: 115V / 1.4A / 60Hz / Single Phase, NEMA 5-15P plug

  • Weight: 210 lbs (96 kg)

Optional Accessories (Extra Charges May Apply)

  • Double or triple draft columns

  • Two-way tapper manifold

  • Draft cap
