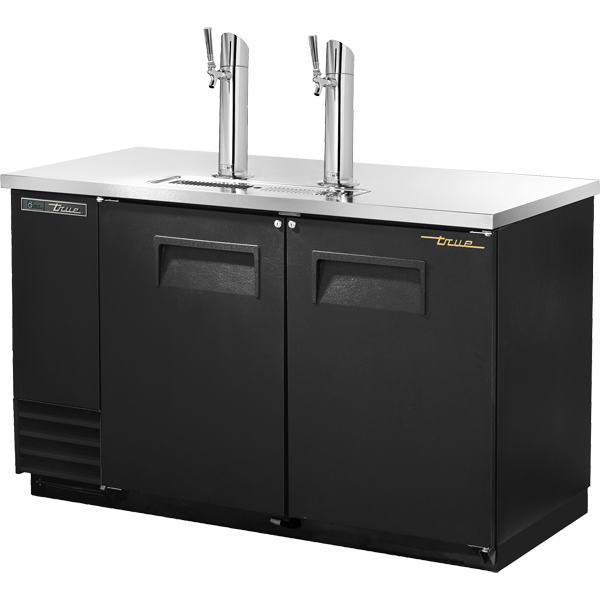

True TDD-2-HC 58" Solid Swing Door Direct Draw Beer Dispenser

True
Add to WishlistCompare Contact for Price
  • Design
    • True’s direct draw beer dispensers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.
  • Refrigeration System
    • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
    • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).
    • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
    • Condensing unit accessed from behind front grill, slides out for easy cleaning and maintenance.
  • Cabinet Construction
    • Exterior - Black, powder coated cold-rolled steel with stainless steel countertop.
    • Interior - Stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls.
    • Door threshold protector prevents damage to cabinet from routine loading of product.
    • Insulation - entire cabinet structure and solid doors are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
    • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
    • Two (2) 3" (77 mm) diameter stainless steel insulated beer columns. Cold air is directed into beer column(s) to reduce foaming and maximize draft beer profits.
  • Doors
    • Wear-resistant black powder coated exterior with heavy gauge galvanized steel liner.
    • Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
    • Positive seal doors.
    • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
    • Door locks standard.
  • Lighting
    • LED interior lighting.
  • Model Features
    • Evaporator is epoxy coated to eliminate the potential of corrosion.
    • Convenient 1/2" (13 mm) barbed T drain fitting located on front of cooler.
    • Designed to accommodate all types of beer kegs.
    • Comes standard with a two-way tapper manifold.
    • Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
  • Electrical
    • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
    • 115/60/1 NEMA-5-15R
  • Optional Features/accessories Upcharge And Lead Times May Apply.
    • 6" (153 mm) standard legs.
    • 6" (153 mm) seismic/flanged legs.
    • 2–1/2" (64 mm) diameter castors.
    • 4" (102 mm) diameter castors.
    • Double headed draft column.
    • Triple headed draft column.
    • Three-way tapper manifold.
    • Draft cap.
Ask a Question
SKU: TDD-2-HC
Availability: In Stock Pre order Out of stock
Categories: Bar Refrigeration mixup collection
Tags: Bar Refrigeration True TDD-2-HC
Description

True TDD-2-HC 58″ Solid Swing Door Direct Draw Beer Dispenser

The True TDD-2-HC is a 58-inch commercial beer dispenser engineered for high performance, energy efficiency, and long-lasting durability. Designed to hold two 1/2-barrel kegs, this direct draw beer dispenser is ideal for bars, pubs, and restaurants looking to serve draft beer with precision and reliability.

Premium Build Quality for Heavy-Duty Use

This model features a black powder-coated cold-rolled steel exterior with a stainless steel countertop, built to withstand daily commercial use. Inside, it includes a reinforced stainless steel floor and galvanized steel walls, ensuring durability and easy cleaning.

  • Two solid swing doors with magnetic gaskets

  • 12″ recessed handles for secure grip

  • Foamed-in-place polyurethane insulation for optimal cold retention

  • Door locks included for product security

  • LED interior lighting for easy keg access

High-Efficiency Refrigeration System

Equipped with a high-capacity refrigeration system, the TDD-2-HC uses R290 hydrocarbon refrigerant, which offers zero ozone depletion potential (ODP) and minimal global warming potential (GWP). The internal temperature remains consistent between 33°F to 38°F (0.5°C to 3.3°C)—perfect for serving ice-cold beer.

  • Electronically commutated fan motors (ECM) for energy savings

  • Slide-out condensing unit for easy maintenance

  • Cold air channeled to twin 3″ insulated beer columns to minimize foam and maximize profits

Tap-Ready and NSF Certified

The dispenser includes a two-way tapper manifold and supports various keg types. Certified under NSF/ANSI Standard 7, it meets food safety standards for storing and dispensing beverages in commercial environments.

  • Corrosion-resistant epoxy-coated evaporator

  • Front-facing T-drain fitting for fast cleanup

  • Bar-ready design to integrate with your existing workflow

Specifications

  • Model: TDD-2-HC

  • Doors: 2

  • Keg Capacity: 2 x 1/2-barrel kegs

  • Dimensions:

    • Width: 58 7/8″ (1496 mm)

    • Depth: 27 1/8″ (689 mm)

    • Height: 37″ (940 mm)

  • Electrical: 115V / 2.8A / 60Hz / Single Phase, NEMA 5-15P plug

  • Weight: 360 lbs (164 kg)

Optional Accessories (Extra Charges May Apply)

  • Double or triple draft columns

  • Three-way tapper manifold

  • Draft cap

  • 6″ standard or seismic legs

  • 2.5″ or 4″ castors
