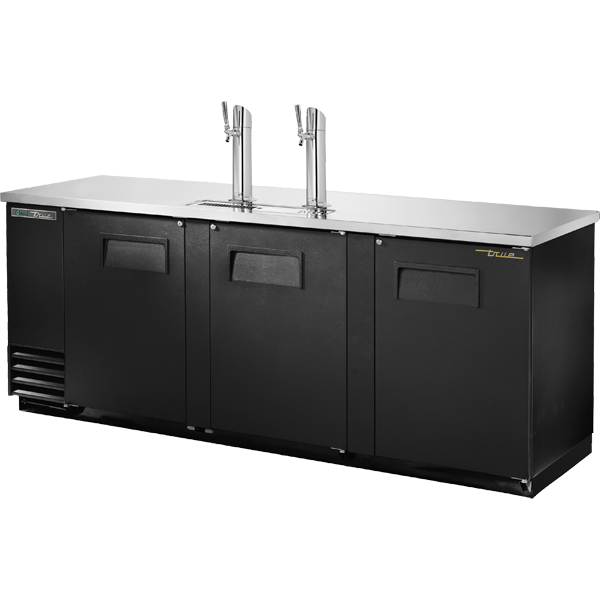

True TDD-4-HC 90" Solid Swing Door Direct Draw Beer Dispenser

True
Add to WishlistCompare Contact for Price
  • Design
    • True’s direct draw beer dispensers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.
  • Refrigeration System
    • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
    • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).
    • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
    • Condensing unit accessed from behind front grill, slides out for easy cleaning and maintenance.
  • Cabinet Construction
    • Exterior - Black, powder coated cold-rolled steel with stainless steel countertop.
    • Interior - Stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls.
    • Door threshold protector prevents damage to cabinet from routine loading of product.
    • Insulation - entire cabinet structure and solid doors are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
    • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
    • Two (2) 3" (77 mm) diameter stainless steel insulated beer columns. Cold air is directed into beer columns to reduce foaming and maximize draft beer profits.
  • Doors
    • Wear-resistant black powder coated exterior with heavy gauge galvanized steel liner.
    • Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
    • Positive seal doors.
    • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
    • Door locks standard.
  • Lighting
    • LED interior lighting.
  • Model Features
    • Evaporator is epoxy coated to eliminate the potential of corrosion.
    • Convenient 1/2" (13 mm) barbed T drain fitting located on front of cooler.
    • Designed to accommodate all types of beer kegs.
    • Comes standard with a two-way tapper manifold.
    • Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
  • Electrical
    • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
    • 115/60/1 NEMA-5-15R
  • Optional Features/accessories Upcharge And Lead Times May Apply.
    • 6" (153 mm) standard legs.
    • 6" (153 mm) seismic/flanged legs.
    • 2–1/2" (64 mm) diameter castors.
    • 4" (102 mm) diameter castors.
    • Double headed draft column.
    • Triple headed draft column.
    • Three-way tapper manifold.
    • Draft cap.
Ask a Question
SKU: TDD-4-HC
Availability: In Stock Pre order Out of stock
Categories: Bar Refrigeration Draft Beer Cooler mixup collection
Tags: Bar Refrigeration Draft Beer Cooler True TDD-4-HC
Description

True TDD-4-HC 90″ Solid Swing Door Direct Draw Beer Dispenser

The True TDD-4-HC is a high-capacity, commercial-grade direct draw beer dispenser engineered for performance, efficiency, and durability. With space for up to four 1/2-barrel kegs, this 90″ wide beer cooler is the perfect choice for bars, pubs, restaurants, and event venues seeking professional-grade draft dispensing in a sleek, reliable unit.

Premium Design Built for Heavy-Duty Use

Crafted with high-quality materials, the TDD-4-HC features a black powder-coated steel exterior and stainless steel countertop for durability and visual appeal. Its interior boasts a stainless steel floor and reinforced galvanized steel walls—designed to withstand the demands of daily keg loading and unloading.

  • Triple swing doors with positive seals and magnetic gaskets

  • 12″ recessed handles for easy, lasting operation

  • Door locks included for security

Superior Refrigeration for Colder Beer, Lower Costs

This unit features an oversized, factory-balanced refrigeration system using eco-friendly R290 hydrocarbon refrigerant. It maintains consistent internal temperatures from 33°F to 38°F (0.5°C to 3.3°C), ensuring your beer stays crisp, cold, and ready to pour.

  • Energy-efficient ECM fan motors for reduced heat and better airflow

  • Slide-out condensing unit for quick maintenance

  • Cold air ducted into dual stainless steel beer columns to prevent foaming and waste

Tap-Ready and NSF Certified

The TDD-4-HC comes ready with a two-way tapper manifold, designed to handle multiple keg types with ease. It meets NSF/ANSI Standard 7 for storing and dispensing packaged or bottled beverages, ensuring top-tier sanitation and reliability.

  • LED interior lighting for visibility

  • Corrosion-resistant epoxy-coated evaporator

  • Convenient front T-drain fitting for cleaning

Specifications

  • Model: TDD-4-HC

  • Door Count: 3

  • Capacity: Holds 4 x 1/2-barrel kegs

  • Dimensions:

    • Width: 90 3/8″ (2296 mm)

    • Depth: 27 1/8″ (689 mm)

    • Height: 37″ (940 mm)

  • Electrical: 115V / 2.8A / 60Hz, NEMA 5-15P plug

  • Weight: 495 lbs (225 kg)

Optional Accessories (Upcharges Apply)

  • Double or triple draft towers

  • Three-way tapper manifold

  • Draft cap

  • 6″ legs or flanged legs

  • 2.5″ or 4″ casters for mobility
