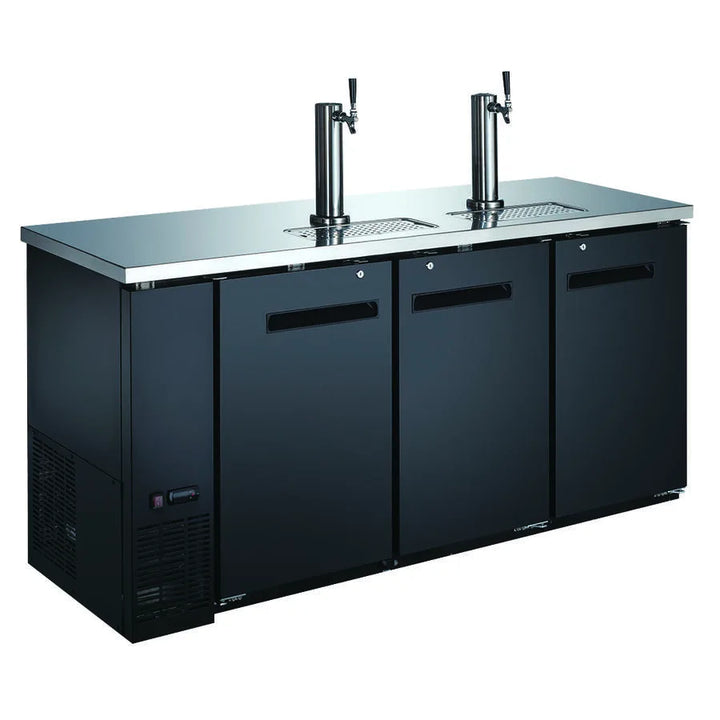

Omcan BB-CN-0020-DH 73″ Triple Solid Doors Kegerator / Beer Dispenser with 2 Taps – 19.6 cu.ft. Capacity
Secure checkout with
Product Overview
Specification Sheet
Product Specifications
Official Omcan Resources
2 Year Parts Warranty
2 Year Labor Warranty
5 Year Compressor Warranty
cETLus Certified
ETL Sanitation Certified
NEMA 5-15 P
Canadian Support
Ships From Canada
Fast, reliable delivery to most Canadian cities.
Commercial Refrigeration • Canada Commercial Sales
Commercial Product Overview
Best for commercial kitchens needing reliable cold storage with consistent temperature control.
Buyers should verify the specifications on this page to confirm dimensions, requirements, and installation compatibility prior to ordering.
Brand: OmcanModel: BB-CN-0020-DHCategory: Commercial RefrigerationPower Source: ElectricTemp: 5 to 0.5°C / 41 to 33°F
Consistent Cooling
Maintains 5 to 0.5°C / 41 to 33°F for dependable food-safe holding.
Storage Capacity

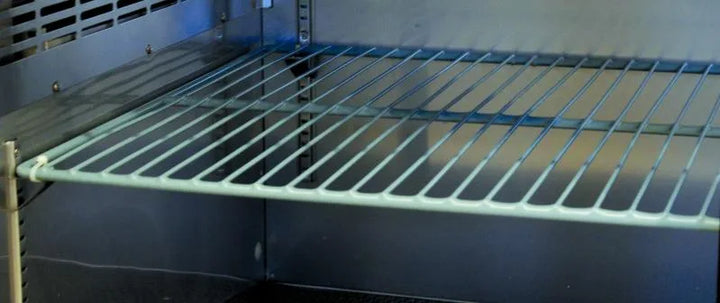

19.6 cu.ft. / 556 L capacity with 6 shelves for organized workflow.
Commercial Build
Built for long-term reliability in demanding foodservice spaces.
Efficient System
R290 refrigerant with 1/4 HP compressor power.
Key Benefits
Decision points for commercial buyers
- 19.6 cu. ft. provides a concrete comparison point for draft beer service
- The intended draft beer service role gives this configuration a defined operational purpose
- Usable capacity and door or lid access can be checked before the order is released
- Delivery access can be planned before delivery
- Omcan item 50065 provides one consistent reference through project handoff
Buying Tips
Reduce ordering risk before checkout
Specifications
Commercial Equipment Specifications — Built for Fast, Accurate Buyer Comparison.
Core Product Details
BrandOmcan
ModelBB-CN-0020-DH
CategoryCommercial Refrigeration
Equipment TypeCommercial Kegerator / Beer Dispenser
Fit & Dimensions
Width72.8"
Depth24"
Height51.5"
Overall Dimensions72.8" x 24" x 51.5"
Overall Dimensions (SI)1849 x 610 x 1308 mm
Net Weight331 lb / 150 kg
Gross Weight385 lb / 175 kg
Number of Doors3 Swing Doors
Performance & Output
Capacity19.6 cu.ft. / 556 L
Temperature Range5 to 0.5°C / 41 to 33°F
Horsepower1/4 HP
RefrigerantR290
Shelves6
Utilities & Requirements
Voltage115 V
Electrical Requirements115V / 60Hz / 1Ph
Phase1 Ph
Frequency60 Hz
Amperage4 A
Power SourceElectric
NEMA PlugNEMA 5-15P
Build & Certifications
Warranty2 Years Parts and Labour; 5 Years Compressor
CertificationsETL, ETL Sanitation
Additional Specs
Buyer note: Ensure your space, connections, and access points match this unit before ordering. Our team can help confirm fit and requirements to prevent installation issues and delays.
Frequently Asked Questions
What are the key specifications of the Omcan BB-CN-0020-DH?
This model is a Commercial Kegerator / Beer Dispenser.Capacity: 19.6 cu.ft. / 556 L.Operating temperature: 5 to 0.5°C / 41 to 33°F.Doors: 3 Swing Doors.Refer to the Specifications section on this page for the complete model details.
How much space should I allow for the Omcan BB-CN-0020-DH?
The listed fit information is Width: 72.8" • Depth: 24" • Height: 51.5" • Weight: 331 lb / 150 kg.Also allow the service and operating clearances required by the manufacturer.
What electrical service does the Omcan BB-CN-0020-DH require?
The listed electrical requirement is 115V / 60Hz / 1Ph. Amperage: 4 A. Plug configuration: NEMA 5-15P.Confirm that the installation site matches these requirements before ordering.
What should I confirm before ordering the Omcan BB-CN-0020-DH?
Confirm the model, dimensions, access path and installation requirements shown on this page. The listed warranty is 2 Years Parts and Labour; 5 Years Compressor. If you want help confirming fit or requirements, contact Continental Restaurant Equipment at (416) 783-5907 before ordering.
