Thesis H110E-A Dishwasher, Door Type - Continental Restaurant Equipment

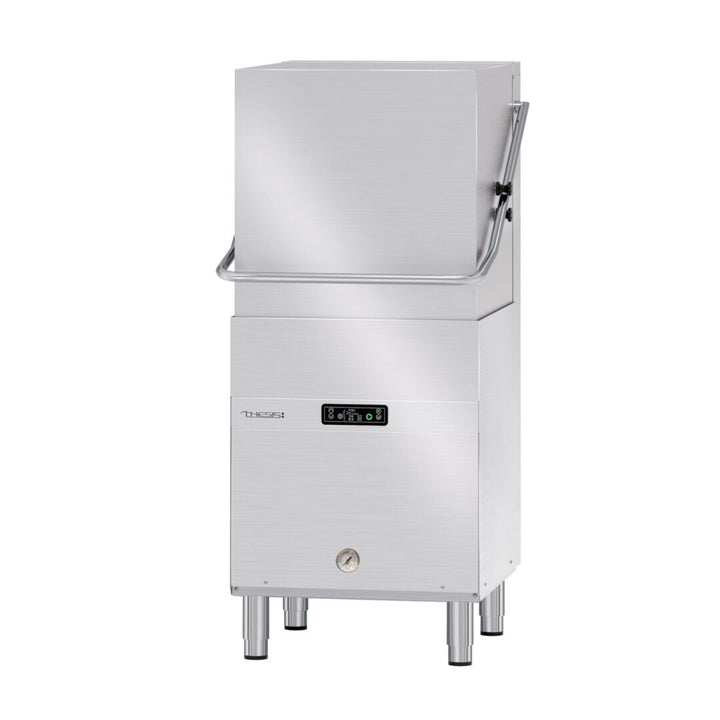

Thesis H110E-A 20 in High-Temperature Hood-Type Dishwasher, 60 Racks/Hour

$10,099.00 $7,599.00
Thesis
Add to WishlistCompare

Standard Features

  • Authorized Commercial Equipment Supplier— We specialize in commercial dishwashers.
  • Fast Shipping Across Canada— Reliable delivery to major Canadian cities.
  • Trusted Brands Only— We carry proven manufacturers like Hobart, Jet-Tech, ATA, and Thesis.
  • Support Beyond Checkout— Documentation, specs, and expert help when you need it.
🇨🇦 Ships From Canada
🇨🇦 Canadian Support (416) 783-5907
NSF Certified
NSF Certified
Food safety standards
ETL Listed
ETL Listed
Safety certified
PDF
Spec Sheet
View Product Specifications

Why Buy From Us

  • Authorized Commercial Equipment Supplier — We specialize in commercial dishwashers and sinks.
  • Fast Shipping Across Canada — Reliable delivery to major Canadian cities.
  • Trusted Brands Only — We carry proven manufacturers like ATA, Thesis, Canplas, MixRite, and Omcan.
  • Support Beyond Checkout — Documentation, specs, and expert help when you need it.
🇨🇦 Ships From Canada
🇨🇦 Canadian Support (416) 783-5907
Ask a Question
SKU: H110E-A
Availability: In Stock Pre order Out of stock
Warewashing Faucets & Sinks • Canada Commercial Sales

Commercial Product Overview

Best for restaurants needing reliable warewashing performance, sanitation confidence, and correct installation fit.
The Thesis H110E-A is a high-temperature hood-type dishwasher designed for faster rack movement in demanding Canadian dishrooms. It accepts standard 20 × 20-inch racks, provides 395 mm of clearance and reaches up to 60 racks or 1,080 dishes per hour under standard conditions. Four programmable cycles, a 1.5 HP wash pump, push-to-start operation and straight-through or corner placement support a deliberate soiled-to-clean workflow.

Buyers should verify the specifications on this page to confirm dimensions, requirements, and installation compatibility prior to ordering.

Specifications FAQ
Brand: ThesisModel: H110E-ACategory: Warewashing Faucets & SinksPower Source: Electric
Commercial Grade Built for Daily Use Canada-Wide Sales
Spec-first confidence: verify fit, requirements, and compatibility before ordering.
Commercial intent: equipment listed for professional foodservice environments.
Ordering tip: match doorway/service access and confirm connections/clearances.
Sanitation Ready

Built for cleaner back-of-house workflow and commercial sanitation routines.

Water / Drain Fit

Water line: ¾” (or ½” with ¾” NPT terminal) hose supplied.Drain: 1” (25mm) connection hose supplied.

Service Workflow

Designed for dependable use in busy dish rooms and prep areas.

Commercial Build

Durable construction supports long-term professional foodservice use.

Key Specifications

Essential fit, capacity, utility, and certification details.

View all specifications
ModelH110E-A
Fit CheckW 24”½ × D 30”¼ × H 74¾”
Electrical6.52kW, 208/220V 50/60Hz, 30A 3PH, 40A 1PH
PowerElectric
Key Benefits
Decision points for commercial buyers
  • Up to 60 racks or 1,080 dishes per hour under standard conditions
  • Standard 20 × 20-inch racks with 395 mm hood clearance
  • Four programmable cycles and LCD temperature monitoring
  • 1.5 HP wash pump with stainless tank filtration
  • Straight-through or corner layout with push-to-start hood operation
Buying Tips
Reduce ordering risk before checkout
Fit check: Width: 24”½ • Depth: 30”¼ • Height: 74¾” • Weight: 265lbs (120kg)
Reserve the H110E-A’s full 620 × 770 × 1,900 mm envelope, including hood travel and service space, then coordinate clean and soiled tables. The unit is specified at 6.52 kW and 208/220V with field-configurable phase options; verify nameplate amperage with the electrician. Provide 55°C inlet water at 30–45 psi, and order a drain pump only if the site requires it.
Specifications
Commercial Equipment Specifications — Built for Fast, Accurate Buyer Comparison.
Core Product Details
BrandThesis
ModelH110E-A
CategoryWarewashing Faucets & Sinks
Equipment TypeDishwasher
Installation TypeDoor Type
Fit & Dimensions
Width24”½
Depth30”¼
Height74¾”
Net Weight265lbs (120kg)
Gross Weight295lbs (133.5kg)
Door Clearance15.6” (395mm) height
Performance & Output
Rack Size / Slots20” x 20” (500 x 500mm)
Wash Pump1.5HP
Electrical / Gas Requirements
Electrical Requirements6.52kW, 208/220V 50/60Hz, 30A 3PH, 40A 1PH
Power SourceElectric
Power Requirements6.52kW, 208/220V 50/60Hz, 30A 3PH, 40A 1PH
Drain Size1” (25mm) connection hose supplied
Water Line¾” (or ½” with ¾” NPT terminal) hose supplied
Water Pressure30–45psi (2–3bar)
Booster Heating6.0kW, capacity: 1.9gal (7.3L)
Tank Heating4.5kW, capacity: 9.8gal (37L)
Build & Certifications
Special FeaturesEcoclean Water Control, Straight-Thru/Corner Hood, 2 Dish Baskets, 1 Glass Basket, 2 Cutlery Trays
Additional Specs
Hot water requirments½ GPC (2.6LPC) 125⁰F (55⁰C) [will operate with cold water at reduced capacity]
Buyer note: Ensure your space, connections, and access points match this unit before ordering. Our team can help confirm fit and requirements to prevent installation issues and delays.
Why Buy From Us
Continental Restaurant Equipment can review the H110E-A’s hood clearance, dish-table orientation, field-convertible electrical configuration and hot-water requirements with Canadian buyers before purchase. Coordinating those details early is essential for a 6.52 kW pass-through machine that becomes part of the dishroom layout.

Related Categories

Explore compatible equipment groups and closely related commercial categories.

Thesis Commercial DishwashersDoor-Type DishwashersCommercial DishwashersSoiled Dish TablesClean Dish Tables

Frequently Asked Questions

Is the Thesis H110E-A a door-type or hood-type dishwasher?
It is a hood-type, pass-through dishwasher. The rack can travel through a straight line or a corner arrangement, allowing the H110E-A to integrate with separate landing tables and a clear dirty-to-clean dishroom path.
What throughput should be expected from the H110E-A?
Thesis lists up to 60 racks per hour under standard conditions and approximately 35 racks per hour on the NSF cycle. Real production varies with the programmed cycle, scraping, loading, inlet temperature and operator pace.
Which rack and ware sizes fit the H110E-A?
The machine uses 20 × 20-inch (500 × 500 mm) racks and offers 395 mm of vertical clearance. Thesis identifies plates, glassware, medium objects and GN 1/1 gastronorm pans as suitable when loaded in the appropriate rack.
Is a drain pump standard on the H110E-A?
No. Thesis lists the drain pump and associated partial-refill system as optional on the H110E-A. Review the floor or wall drain position with the installer and include the pump option only when the site layout needs it.
