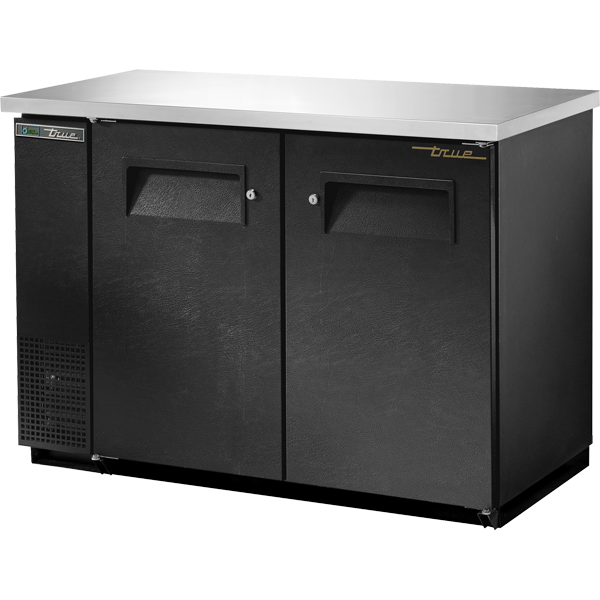

True TBB-24-48-HC 49" Solid Swing Door 24" Back Bar Cooler
- Design
- True’s refrigerated back bar coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.
- Refrigeration System
- Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Condensing unit accessed from behind front grill, slides out for easy cleaning and maintenance.
- Cabinet Construction
- Exterior - Black, powder coated cold-rolled steel with stainless steel countertop.
- Interior - Stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls.
- Door threshold protector prevents damage to cabinet from routine loading of product.
- Insulation - entire cabinet structure and solid doors are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
- Doors
- Wear-resistant black powder coated exterior with heavy gauge galvanized steel liner.
- Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
- Positive seal doors.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
- Door locks standard.
- Shelving
- Four (4) adjustable, heavy duty, black PVC coated wire shelves 17–3/4"L x 18"D (451 mm x 458 mm). Four (4) chrome plated shelf clips included per shelf.
- Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.
- Lighting
- LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
- Model Features
- Evaporator is epoxy coated to eliminate the potential of corrosion.
- Designed to accommodate a variety of beer kegs.
- NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.
- Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-15R
- Optional Features/accessories Upcharge And Lead Times May Apply.
- 6" (153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 2–1/2" (64 mm) diameter castors.
- 4" (102 mm) diameter castors.
- Additional shelves.
- TrueTrac one liter or wine bottle organizers.
- TrueTrac 12 oz. (355 ml) bottle organizers.
- Red wine thermostat
- White wine thermostat
- Chocolate thermostat
True TBB-24-48-HC 49″ Solid Swing Door Back Bar Cooler
The True TBB-24-48-HC 49″ Solid Swing Door Back Bar Cooler is a premium refrigeration solution for your bar or restaurant. With its durable construction, advanced refrigeration system, and ample storage capacity, it ensures that your beverages stay perfectly chilled and ready to serve.
State-of-the-Art Refrigeration Technology
The True TBB-24-48-HC features an eco-friendly R290 hydrocarbon refrigerant with zero ozone depletion potential (ODP) and minimal global warming potential (GWP), ensuring environmental responsibility. Its high-capacity refrigeration system keeps cabinet temperatures between 33°F to 38°F (0.5°C to 3.3°C) for ideal product preservation.
-
Capillary tube system for efficient cooling
-
Electronically commutated fan motors for greater energy efficiency
-
Sliding condensing unit for easy maintenance and cleaning
Durable, High-Quality Construction
Built for long-lasting performance, the True TBB-24-48-HC features a black powder-coated cold-rolled steel exterior and a stainless steel countertop. Its solid doors are foamed-in-place with high-density polyurethane insulation, which maintains consistent temperature and energy efficiency.
-
Heavy-duty steel frame for added durability
-
Stainless steel floor with reinforced lip for easy cleaning
-
Magnetic door gaskets that are removable without tools
Ample Storage and Adjustable Shelving
With four adjustable wire shelves, the True TBB-24-48-HC provides flexibility in storing various beverages, including beer kegs, bottles, and cans. Its shelves are adjustable in 1/2″ increments, allowing you to maximize storage capacity.
-
Storage capacity:
-
2 x 1/2-barrel kegs
-
48 six-packs of 12 oz cans
-
-
Shelf dimensions:
-
17–3/4″L x 18″D (451 mm x 458 mm)
-
Chrome-plated shelf clips for durability
-
Energy-Efficient LED Lighting
The True TBB-24-48-HC features LED interior lighting, providing brighter, more even illumination throughout the cooler. This energy-efficient lighting improves visibility while enhancing the aesthetic appeal of your beverage display.
Specifications
-
Model: TBB-24-48-HC
-
Door Count: 2
-
Shelf Count: 4
-
Weight: 300 lbs (137 kg)
-
Dimensions:
-
Width: 49–1/8″ (1248 mm)
-
Depth: 24–1/2″ (623 mm)
-
Height: 35–5/8″ (905 mm)
-
-
Electrical:
-
Voltage: 115/60/1
-
Amps: 2.1
-
Plug: NEMA 5-15P
-
Optional Features (Additional Charges Apply)
-
6″ legs or seismic/flanged legs
-
2–1/2″ or 4″ castors for mobility
-
Additional shelves for increased storage
-
TrueTrac organizers for wine bottles, 12 oz bottles, or 1-liter bottles
-
Specialized thermostats for red wine, white wine, or chocolate
