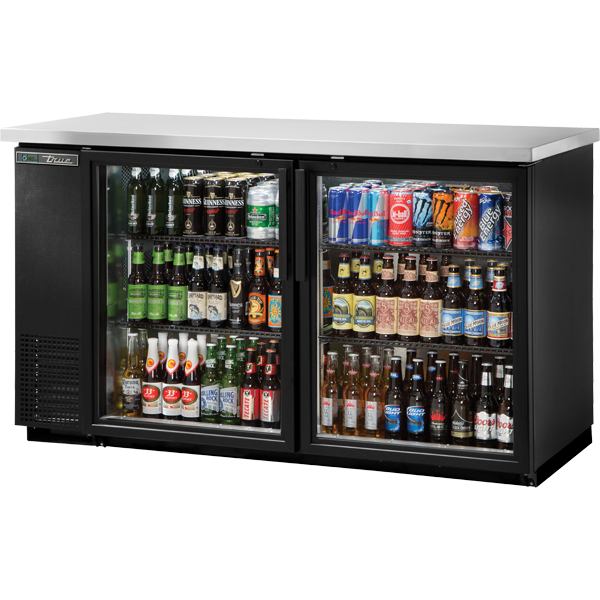

True TBB-24-60G-HC-LD 61" Glass Swing Door 24" Back Bar Cooler
- Design
- True’s refrigerated back bar coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.
- Refrigeration System
- Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Condensing unit accessed from behind front grill, slides out for easy cleaning and maintenance.
- Cabinet Construction
- Exterior - Black, powder coated cold-rolled steel with stainless steel countertop.
- Interior - Stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls.
- Door threshold protector prevents damage to cabinet from routine loading of product.
- Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
- Doors
- "Low-E", double pane thermal insulated glass door assemblies with extruded aluminum frames. The latest in energy efficient technology.
- Each door fitted with 12" (305 mm) long extruded aluminum handle.
- Positive seal doors.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
- Door locks standard.
- Shelving
- Four (4) adjustable, heavy duty, black PVC coated wire shelves 23–3/4"L x 18"D (604 mm x 458 mm). Four (4) chrome plated shelf clips included per shelf.
- Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.
- Lighting
- LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
- Model Features
- Evaporator is epoxy coated to eliminate the potential of corrosion.
- Designed to accommodate a variety of beer kegs.
- NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.
- Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-15R
- Optional Features/accessories Upcharge And Lead Times May Apply.
- 230 - 240V / 50 Hz.
- 6" (153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 2–1/2" (64 mm) diameter castors.
- 4" (102 mm) diameter castors.
- Additional shelves.
- Red wine thermostat
- White wine thermostat
- Chocolate thermostat
True TBB-24-60G-HC-LD 61″ Glass Swing Door Back Bar Cooler
The True TBB-24-60G-HC-LD is a high-performance back bar cooler designed to keep your beverages at the perfect temperature. With glass swing doors and an efficient cooling system, it’s the ideal choice for bars, restaurants, and pubs looking for reliable refrigeration that combines functionality with modern design.
Efficient, Eco-Friendly Cooling System
This self-contained back bar cooler is equipped with a high-capacity refrigeration system that ensures consistent and reliable cooling. Using R290 hydrocarbon refrigerant, it provides zero ozone depletion and low global warming potential, making it a great choice for businesses aiming to be environmentally conscious.
-
Factory-engineered capillary tube system for optimal cooling
-
Refrigeration maintains temperatures between 33°F and 38°F (0.5°C to 3.3°C)
-
Electronically commutated motors (ECM) improve energy efficiency, reducing heat output and prolonging motor life
-
Condensing unit slides out for easy cleaning and maintenance
Durable and Stylish Cabinet Construction
Built to last, the True TBB-24-60G-HC-LD features a powder-coated black steel exterior with a stainless steel countertop, ensuring durability and easy maintenance. The interior is made from stainless steel and designed to withstand heavy-duty use.
-
Reinforced stainless steel floor with 1/2″ lip for added durability
-
Welded, heavy-duty steel frame rail for corrosion protection
-
Foam-in-place insulation with zero ozone depletion and global warming potential
Spacious and Adjustable Storage
This cooler features four heavy-duty adjustable wire shelves, designed to store a variety of products, from beer kegs to bottles and cans. The shelves are adjustable on 1/2″ increments, giving you the flexibility to optimize your storage space.
-
Capacity:
-
3 x 1/2-barrel kegs
-
72 six-packs of 12 oz cans
-
-
Shelving:
-
4 adjustable black PVC-coated wire shelves (23–3/4″L x 18″D)
-
Four chrome plated shelf clips per shelf
-
-
LED interior lighting for consistent and safe illumination
Specifications
-
Model: TBB-24-60G-HC-LD
-
Door Count: 2
-
Shelf Count: 4
-
Weight: 380 lbs (173 kg)
-
Dimensions:
-
Width: 61–1/8″ (1553 mm)
-
Depth: 24–1/2″ (623 mm)
-
Height: 35–5/8″ (905 mm)
-
-
Electrical:
-
Voltage: 115/60/1
-
Amps: 2.7
-
Plug: NEMA 5-15P
-
Optional Features (Additional Charges Apply)
-
6″ legs or seismic/flanged legs for added stability
-
2–1/2″ or 4″ castors for easy mobility
-
Additional shelves for extra storage space
-
Red wine, white wine, or chocolate thermostats for specialized temperature control
