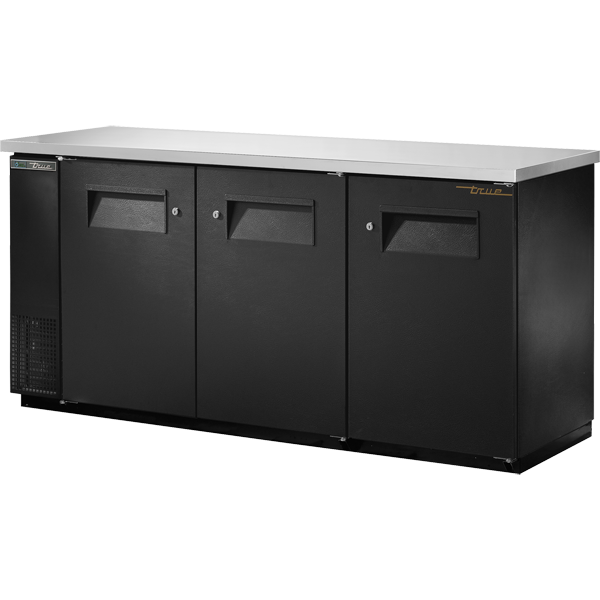

True TBB-24-72-HC 73" Solid Swing Door 24" Back Bar Cooler
- Design
- True’s refrigerated back bar coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.
- Refrigeration System
- Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Condensing unit accessed from behind front grill, slides out for easy cleaning and maintenance.
- Cabinet Construction
- Exterior - Black, powder coated cold-rolled steel with stainless steel countertop.
- Interior - Stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls.
- Door threshold protector prevents damage to cabinet from routine loading of product.
- Insulation - entire cabinet structure and solid doors are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
- Doors
- Wear-resistant black powder coated exterior with heavy gauge galvanized steel liner.
- Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
- Positive seal doors.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
- Door locks standard.
- Shelving
- Four (4) adjustable, heavy duty, black PVC coated wire shelves. Two (2) long shelves which span behind the left and center doors: 40"L x 18"D (1016 mm x 458 mm). Two (2) shelves behind right door: 19–3/8"L x 18"D (493 mm x 458 mm). Four (4) chrome plated shelf clips included per shelf.
- Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.
- Lighting
- LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
- Model Features
- Evaporator is epoxy coated to eliminate the potential of corrosion.
- Designed to accommodate a variety of beer kegs.
- NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.
- Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-15R
- Optional Features/accessories Upcharge And Lead Times May Apply.
- 6" (153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 2–1/2" (64 mm) diameter castors.
- 4" (102 mm) diameter castors.
- Additional shelves.
- Red wine thermostat
- White wine thermostat
- Chocolate thermostat
True TBB-24-72-HC 73″ Solid Swing Door Back Bar Cooler
The True TBB-24-72-HC is an ideal solid swing door back bar cooler designed for high-performance beverage storage. Perfect for bars, pubs, and restaurants, this cooler combines durable construction, advanced refrigeration technology, and a spacious interior to preserve your products at the ideal temperature.
Reliable and Eco-Friendly Refrigeration
The True TBB-24-72-HC features a factory-engineered refrigeration system that guarantees top-tier performance while using environmentally friendly R290 hydrocarbon refrigerant. With its low ozone depletion potential (ODP) and minimal global warming potential (GWP), it is a sustainable choice for your business.
-
Capillary tube system for precise, efficient cooling
-
Temperature range of 33°F to 38°F (0.5°C to 3.3°C) for the best in product preservation
-
Electronically commutated motors (ECM) for enhanced energy efficiency and quieter operation
-
Condensing unit slides out for easy cleaning and maintenance
Heavy-Duty, Long-Lasting Construction
The True TBB-24-72-HC is built with black powder-coated cold-rolled steel for the exterior and stainless steel countertops, ensuring that it withstands daily wear and tear. The interior is made of stainless steel, featuring a reinforced galvanized steel floor for ease of maintenance and longevity.
-
High-density polyurethane insulation for energy efficiency
-
Welded heavy-duty steel frame rail for enhanced corrosion resistance
-
Foamed-in-place solid doors for better insulation and security
Spacious Interior with Adjustable Shelving
The True TBB-24-72-HC offers a spacious storage solution, including four adjustable heavy-duty shelves designed to accommodate various beverage types such as beer kegs, bottles, and cans. Shelves are adjustable on 1/2″ increments, allowing you to customize your storage capacity.
-
Capacity:
-
3 x 1/2-barrel kegs
-
105 six-packs of 12 oz cans
-
-
Shelving:
-
Two long shelves (40″L x 18″D)
-
Two smaller shelves (19–3/8″L x 18″D)
-
Chrome-plated shelf clips for sturdy support
-
Superior Lighting and Visibility
LED interior lighting illuminates the interior, providing safe and even lighting to showcase your products. The lighting is shielded for safety and enhances the visibility of your beverages while contributing to overall energy efficiency.
Specifications
-
Model: TBB-24-72-HC
-
Door Count: 3
-
Shelf Count: 4
-
Weight: 410 lbs (186 kg)
-
Dimensions:
-
Width: 73–1/8″ (1858 mm)
-
Depth: 24–1/2″ (623 mm)
-
Height: 35–5/8″ (905 mm)
-
-
Electrical:
-
Voltage: 115/60/1
-
Amps: 2.7
-
Plug: NEMA 5-15P
-
Optional Features (Additional Charges Apply)
-
6″ legs or seismic/flanged legs for added stability
-
2–1/2″ or 4″ castors for easy mobility
-
Additional shelves for extra storage
-
Specialized thermostats for red wine, white wine, or chocolate
