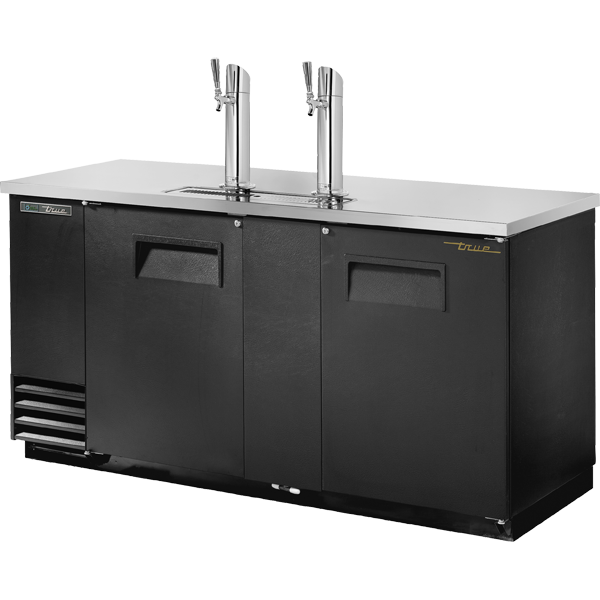

True TDD-3-HC 69" Solid Swing Door Direct Draw Beer Dispenser

True
Add to WishlistCompare Contact for Price
  • Design
    • True’s direct draw beer dispensers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.
  • Refrigeration System
    • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
    • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).
    • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
    • Condensing unit accessed from behind front grill, slides out for easy cleaning and maintenance.
  • Cabinet Construction
    • Exterior - Black, powder coated cold-rolled steel with stainless steel countertop.
    • Interior - Stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls.
    • Door threshold protector prevents damage to cabinet from routine loading of product.
    • Insulation - entire cabinet structure and solid doors are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
    • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
    • Two (2) 3" (77 mm) diameter stainless steel insulated beer columns. Cold air is directed into beer columns to reduce foaming and maximize draft beer profits.
  • Doors
    • Wear-resistant black powder coated exterior with heavy gauge galvanized steel liner.
    • Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
    • Positive seal doors.
    • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
    • Door locks standard.
  • Lighting
    • LED interior lighting.
  • Model Features
    • Evaporator is epoxy coated to eliminate the potential of corrosion.
    • Convenient 1/2" (13 mm) barbed T drain fitting located on front of cooler.
    • Designed to accommodate all types of beer kegs.
    • Comes standard with a two-way tapper manifold.
    • Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
  • Electrical
    • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
    • 115/60/1 NEMA-5-15R
  • Optional Features/accessories Upcharge And Lead Times May Apply.
    • 6" (153 mm) standard legs.
    • 6" (153 mm) seismic/flanged legs.
    • 2–1/2" (64 mm) diameter castors.
    • 4" (102 mm) diameter castors.
    • Double headed draft column.
    • Triple headed draft column.
    • Three-way tapper manifold.
    • Draft cap.
Ask a Question
SKU: TDD-3-HC
Availability: In Stock Pre order Out of stock
Categories: Bar Refrigeration mixup collection
Tags: Bar Refrigeration True TDD-3-HC
Description

True TDD-3-HC 69″ Solid Swing Door Direct Draw Beer Dispenser

The True TDD-3-HC is a premium 69-inch commercial beer dispenser designed to deliver colder temperatures, high energy efficiency, and long-term reliability. Ideal for bars, breweries, and event venues, this unit holds up to three 1/2-barrel kegs and includes everything needed for smooth draft beer service.

Durable Construction Built for Heavy Use

Made with high-quality materials, the TDD-3-HC features a black powder-coated steel exterior with a stainless steel countertop that withstands the wear and tear of commercial environments. Inside, a stainless steel floor with reinforced galvanized walls supports regular keg loading with ease.

  • Two solid swing doors with magnetic gaskets for a tight seal

  • 12″ recessed handles for durability and comfort

  • Door locks included for security

  • LED interior lighting for visibility during service

Energy-Efficient Refrigeration System

This beer dispenser is powered by a high-capacity, factory-balanced refrigeration system using R290 hydrocarbon refrigerant, a safe and eco-friendly option. The unit consistently maintains internal temperatures from 33°F to 38°F (0.5°C to 3.3°C) to keep beverages perfectly chilled.

  • Electronically commutated fan motors (ECM) for energy savings

  • Slide-out condensing unit for fast maintenance

  • Cold air directed into twin 3″ stainless steel beer columns for reduced foam and perfect pours

Tap-Ready and NSF Certified

The TDD-3-HC includes a two-way tapper manifold and is compatible with all standard keg types. Certified under NSF/ANSI Standard 7, it ensures hygienic storage and reliable performance for draft beer dispensing.

  • Epoxy-coated evaporator to resist corrosion

  • Front-facing T-drain fitting for quick cleaning

  • Foamed-in-place polyurethane insulation for superior temperature retention

Specifications

  • Model: TDD-3-HC

  • Doors: 2

  • Keg Capacity: Holds 3 x 1/2-barrel kegs

  • Dimensions:

    • Width: 69 1/8″ (1756 mm)

    • Depth: 27 1/8″ (689 mm)

    • Height: 37″ (940 mm)

  • Electrical: 115V / 2.8A / 60Hz / Single Phase, NEMA 5-15P plug

  • Weight: 400 lbs (182 kg)

Optional Accessories (Upcharges Apply)

  • Double or triple draft columns

  • Three-way tapper manifold

  • Draft cap

  • 6″ legs or flanged legs

  • 2.5″ or 4″ swivel castors
